Best posts made by trader.philipps

Here is the Tutorial EA that I recently created and which covers some of the issues that were asked for in the forum. I tried to keep it as simple and structured as possible.

Disclaimer: This EA is created only for eductaional purposes. It's functions are rarely tested and may contain errors. Using this EA on a real account is strongly not recommanded as the strategy settings are not optimized at all!

Key Features:

• Risk Control based on Balance (SL)
• SL ATR multiplied based
• ATR based trailing
• TPs ATR multiplied based (TP1 / TP2)
• TP1/TP2 visualized by horizontal lines - values will be picked up on terminal restart
• Close on Opposite signal
• Close on max. age
• Limiting trading time
• Protect from tripple swap

ToDos:

• News filter

Custom Indicators used:

1. tma-line-extreme-indicator
2. vq-stridsman_on_jurik2_mtfalerts_nmc
3. waddahattarexplosion_averages_nmc_alerts_2_1
   Any Credits go to the authors!

Installation: Unfortunately I cannot upload a zip file, so you must do a little work manually.

Create a Folder "TMA-EA" in your indicators folder (IMPORTANT!!!) and copy the following indicators into it.

5_1580504153979_waddahattarexplosion_averages_nmc_alerts_2_1.mq4
4_1580504153978_waddahattarexplosion_averages_nmc_alerts_2_1.ex4
3_1580504153978_vq-stridsman_on_jurik2_mtfalerts_nmc.mq4
2_1580504153977_vq-stridsman_on_jurik2_mtfalerts_nmc.ex4
1_1580504153975_tma-line-extreme-indicator.mq4
0_1580504153969_tma-line-extreme-indicator.ex4

Please rename the files according to the names mentioned above as the forum adds strings as prefix to the uploads. But do not remove the file extensions!
It should look like this

Copy (and rename) the files in the expert folder to the experts folder of your MT4 terminal.
1_1580504633596_Tutorial-EA_V1.0.mq4
0_1580504633595_Tutorial-EA_V1.0.ex4

Currently I do forward tests on M30 timeframe in order to things happen more often. The screen when EA is attached to the chart should looklike this:

You can import the file Tutorial-EA_V1.0.mq4 into a fxdreema project, The result would look like this.

@indaplace2be Try this in a loop "for each trade" filtered for buy trades.

If condition is true (orange dot) you'd run the trailing block.

For sell trades you check if SL is greater than open price.

I found the solution. I do the following in the on Init tab:

The in variables vi_current_timeframe and vi_next_timeframe I defined in variables as integer.

Here the code if someone wants to do the same:

//
int TimeFrames_cust[9] = { 1,5,15,30,60,240,1440,10080,43200 };
int CurrentTimeIndex = ArrayBsearch(TimeFrames_cust,_Period,8,0,MODE_ASCEND);

vi_current_timeframe= (ENUM_TIMEFRAMES) TimeFrames_cust[CurrentTimeIndex];
vi_next_timeframe= (ENUM_TIMEFRAMES) TimeFrames_cust[CurrentTimeIndex+1];
//

@ekifox Finally by try and error :))

Use this for handle:

//
int handle = FileOpen(tempFileName,FILE_READ|FILE_CSV|FILE_ANSI);
//

Don't ask me why it has to be FILE_ANSI as I saved my file with UTF-8 encoding explicitly.
However, the result looks like this..

@roar Used the horizontal line approach for now. I will post my work in the tutorial section after some testing (including forward on demo).

Here are the main features ..

This project demonstrates how to solve several issues that may occur during building an Expert Advisor. Here are the Key Features:

• Risk Control based on Balance (SL)
• SL ATR multiplied based
• ATR based trailing
• TPs ATR multiplied based (TP1 / TP2)
• TP1/TP2 visualized by horizontal lines - values will be picked up on terminal restart
• Close on Opposite signal
• Close on max. age
• Limiting trading time
• Protect from tripple swap

ToDos:

• Volume filter
• News filter

That's how it looks like right now.

Try and error. I took a look how the indicator is embedded in fxdreema. Here is an example.

It seems like all you need to do is to use the indicator somewhere and than in the constants declaration you use the same syntax.

That's it!

@rafaels919 Sorry, I mixed up the projects. I meant @roar 's approach.

I pimped the code a bit to make it more obvious what @roar or I with my answer meant.

In roar's project he sets the constants like that

Those are 6 values. Roar splits that sequence string into 6 parts (seperator is the comma) and creates an array seq[i]. In the given case the array index has a size of 6. As arrays are 0 based, this means it starts counting by 0 (not by 1). You can read the integer value of each array position in the index like
seq[0], seq[1], ...,seq[5]

I print this out in the log and here is the result ..

Knowing this, you can at each time go wherever you want in the index of the array by selecting the right index value.
So if you count your losses by a variable, you can use the array like roar did in the BUY block.

baseLot * seq[loses]

loses is the integer of your losses counter. So if you are at losses 3, it will do like baselot * seq[2]
Unfortunately there is a glitch in roar's code as the array is 0 based. So if the first value is not 1, it will not match corectly (or in other word works different to fxdreema). But that's not that important.

Did you get what I mean?

Again in short refering to roar's version.

Sequence is: 1, 3, 5, 7
Startlot is 0.01

Will result in ..

seq[0]: 1
seq[1]: 3
seq[2]: 5
seq[3]: 7

Where the numbers in brackets represent the value of you losses counter.

Is that clear?

@rafaels919 With @roar 's solution you can step back and forth to any position. You may also consider another variable for the sequence position and modify this only and keep the losses variable as is if that makes sense.

In the concrete case if you want to step back 2 sequence steps, you would
a) check if losses >2
b) count losses-2

In the case you want to step forward you need to ensure that the result is not bigger than the sequence index (roar uses the variable seqLen). And of course always keep in mind that the array is 0 based.

@tanjiayi1 Here in short ...

1. right
2. also right, but as you are at the very begining of the candle, the result is wrong. If you have a period of let's say 14 it can make a slight difference especially on a daily chart. If you use period 200 or something like that, it won't matter that much. But by principle you should work with closed candles - meaning candle ID1.
3. Well, I think I answered that in 2 already, but from calculation perspective assuming your ATR period is 14, using candle ID0 means calculation of 13 full candles and 1 with almost no move when you EA opens the trade or checks the condition.

@roar Okay, will dig deeper into it once news filter is working. Right now I just do this

Thanks a lot!

@rafaels919 Check minimum stop level in specifications of the symbol. That varies from broker to broker and may be different for several instruments.

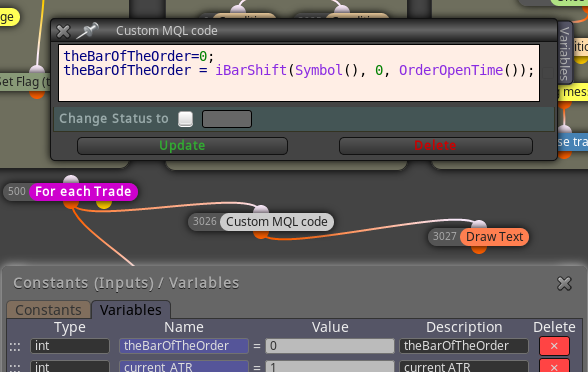

@roar thanks a lot. Never used the custom mql block so far. Didn't expect it to be so easy.

Thanks a lot.

@titangeorge Same for me. However, the logic seems to be a multiple zero line cross. The first screenshot only shows 2 lines and the 2nd one 3 lines. My guess is that all have to be above the zero line or below at the same time. But that's only a gues.

@ambrogio I don't think there is an API function available to do so. At least I'm not aware of.
If it's sufficient to stop the EA, you may set a flag that you check before opening new trades.

You may also do so by mql4 code .. see example here https://www.mql5.com/en/forum/113277
However, they suggest a software that auto-controles the mt4 window. But I have no clue how your EA might trigger that.

@money123456 I'm not a real MQL4 coder, but I took the challenge to add ATR bands to JMA indicator (token from McGinley). Hence, the work and rights an whatever belong to the people that invented those indicators.
I tested it and looked good. You may easily just check against the Buffers named "Upper ATR Band" or "Lower ATR Band" in a condition block.
0_1567530329424_jma_sl_atr_bands.mq4

Hope that helps you a bit.

@justintkt I don't think that's the solution for your problem, but check block 4! It doesn't look right.

@satoriforex2k18 From what you wrote I understood this:

But be careful with the spread.

That means:

Trailing start: Price has to travel 1000 pips in order to start the trailing
Trailing step: Price has to mover another 500 pips until next SL adjustment
Trailing stop: distance from current price, when adjustment takes place

I use Once per bar as a time filter as it is sufficient for my requirements. You may want to use a different time filter or don't use it.

@ekifox yepp, my result looks similar. It doesn't get the string but a byte it looks like.
No clue at the moment.

@marianomartinez In order to avoid unnecessary calculations you should put it as early as possible.

@abubakar The exact value of the cross will be hard to get. But as a workaround you may loop back in order to find the candle where cross happened and take the lower value (buy condition) of the emas.
